Specifications
2.No noise,no shake
3.Hydraulic system
4.Easy operation
5.Passed CE certification

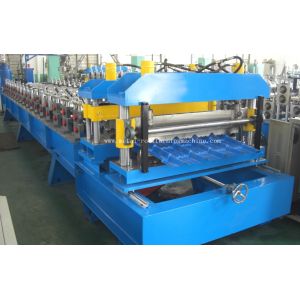

Tile Roll Forming Machine
| Number of stations | 16-18 sets |
| Thickness | 0.45-0.6mm |
| Main power | 11.5KW |
| Shipment packing | one 40FT container |
| Forming speed | 15mtr./min(Not include shear) |
| Machine frame | H-BEAM frame |
| Complete Line Consist Of |
| Passive uncoiler |
| Infeeding applicator |
| Roll forming machine unit |
| Hydraulic press |
| Hydraulic shear |
| Output table |
Technical Data
| Productivity | Tiles as the drawing |
| Man power required | One operator with one assistant |
| Set up time | 15 mins |
| Working hours per day | 8 to 16 |
| Line direction | Left to right while facing operator panel |
| Overall machine length required | 12.6M |
| Approximate machine height | 1.5M |
We can also design tile roll forming machines according to your specific profile drawing.
Packaging & Delivery
| Packaging Details: | With film |
|---|---|
| Delivery Detail: | 60-80Days |
Flow-process diagram:
↓
↓
↓
↓
↓
↓
