15Kw C / Z Quick Interchangeable Purlin Roll Forming Machine with Hydraulic Pre-cutting

Name: 15Kw C Z Quick Interchangeable Purlin Roll Forming Machine with Hydraulic Precutting
Brand: YTSING
Price: 1 USD

Wholesale 15Kw C / Z Quick Interchangeable Purlin Roll Forming Machine with Hydraulic Pre-cutting from china suppliers

Model Number : YD-0234

Place of Origin : China

Brand Name : YTSING

Certification : CE

MOQ : one

Packaging Details : Seaworthy

Delivery Time : Within 60-80days after receiving 30% down payment

Payment Terms : 30% paid by TT in advance and balance paid by TT before shipping.

Supply Ability : 10 sets per month

Contact Now

15Kw C / Z Quick Interchangeable Purlin Roll Forming Machine with Hydraulic Pre-cutting

c-z quick interchangeable machine adopts a special structure. The rollers for C＆Z are changed very quickly without dismantle any parts . one machine can produce all specifications of C＆Z purlins . Crimples are optional to increase rigidity of purlins.

Specification
Number of Stations	20 sets
Thickness	1.5-3.0mm
Main Power	13.5KW
Shipment Packing	one 40FT container
Forming Speed	15-18 mtr./min(Not include shear)
Machine Frame	H-BEAM Frame

Technical Data
Productivity	C&Z channel as the drawing
Man Power Required	One operator with one assinstant
Set Up time	15 mins
Working Hours per Day	8 to 16
Line Direction	Left to right while facing operator panel
Overall Machine Length Required	12.6m
Approximate Machine Height	1.5M

Complete Line Consist Of

Passive decoiler

Feeding&Leveling applicator

Roll forming

Hydraulic punching

Hydraulic shear

Output table

We can also design rolling C-Z Purlin machine according to your specific profile drawing.

Layouts:

Wuxi Yuanding Science & Technology Co., Ltd.

Contact person: Lily

Tel: +86-024-8623-4279

Mobile: +86-159-4055-9060

Contact me to get more information

Welcome to contact and visit us, waiting for your cooperation sincerely.

Product Tags:

roll forming machines

rolling forming machine

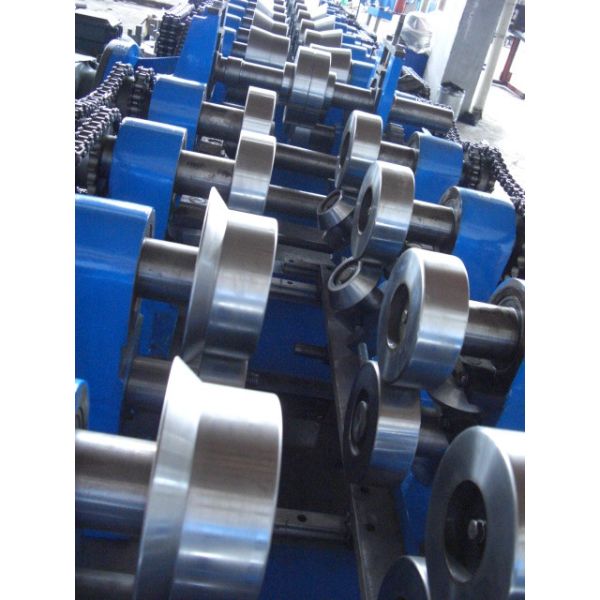

15Kw C / Z Quick Interchangeable Purlin Roll Forming Machine with Hydraulic Pre-cutting Images
